BECK GTS
STANDARD SPECIFICATIONS
- Body: hand laminated fiberglass with bonded frame
- Chassis: 304 stainless steel, folded/welded 3×8 main box monocoque tub with CNC bent tubular rear and integrated roll bar.
- Suspension:
- Front: Dual tubular A-arm.
- Twin tube billet aluminum adjustable coil-over shocks.
- Rear: Independent four link parallel trailing arm with bottom mounted A frame.
- Twin tube billet aluminum adjustable coil-over shocks.
- Steering: manual rack and pinion
- Dimensions:
- Length: 165”
- Width: 64”
- Height: 42”
- Wheelbase: 91”

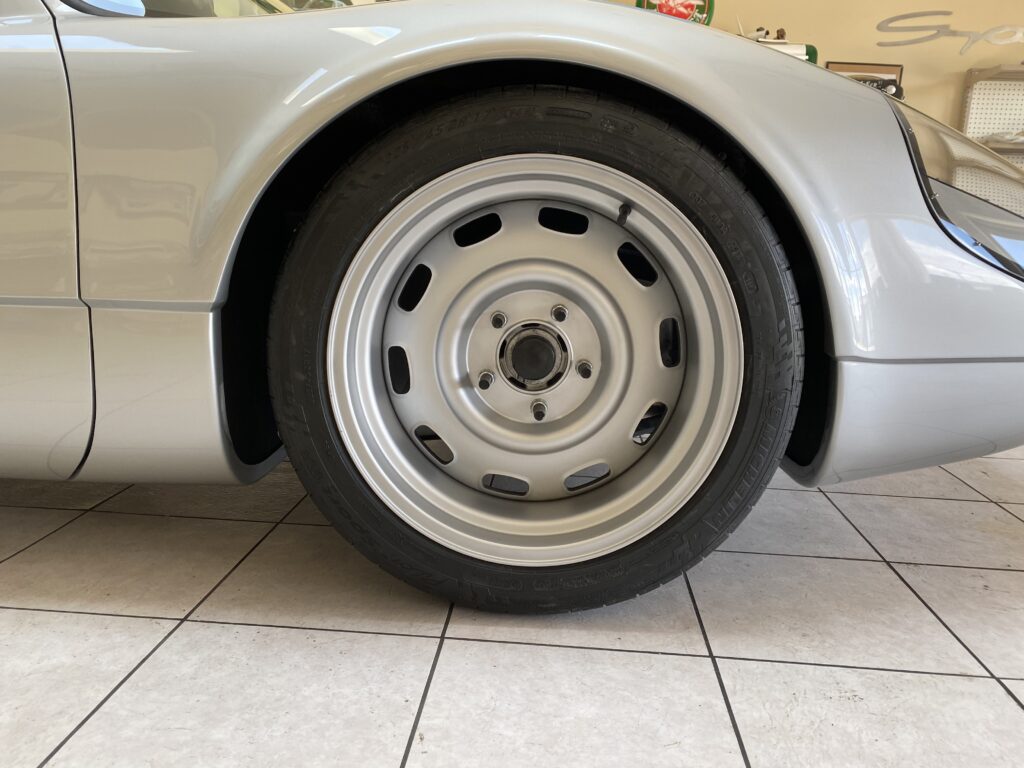

- Wheels:

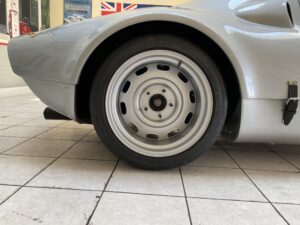

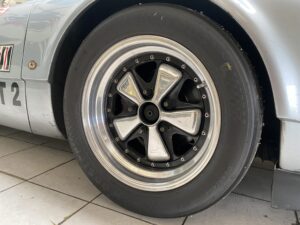

- Front 16×8, Rear 16×9 Fuchs style, aluminum. C-style CNC aluminum optional (16” or 17”)
- Tires: 225/50/16, 255/50/16 BFG G Force Sport Comp 2
- * please note that tire size and brand can vary due to supply/manufacturing limitations
- Brakes: 4 wheel disc
- 12” vented disc, aluminum bridge-bolt caliper
- internal rear park brake with shoes
- Drivetrain: mid engine
- Set up for 901 or 915 manual 5 speed gearbox
- Set up for any aircooled 911 flat six from 2.0L to 1995 3.6L (can accommodate larger custom builds)
- “coming soon” set up for full M96 drivetrain
- Weight: 1750 lbs, (varies with specifications)
